HOIST Way Machine Room Size

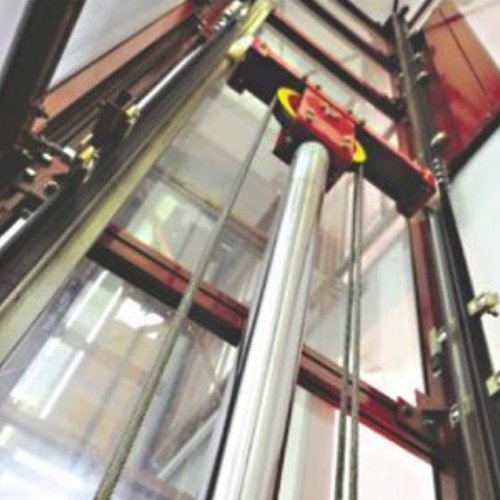

| HYDRAULIC ELEVATOR | |||||
|---|---|---|---|---|---|

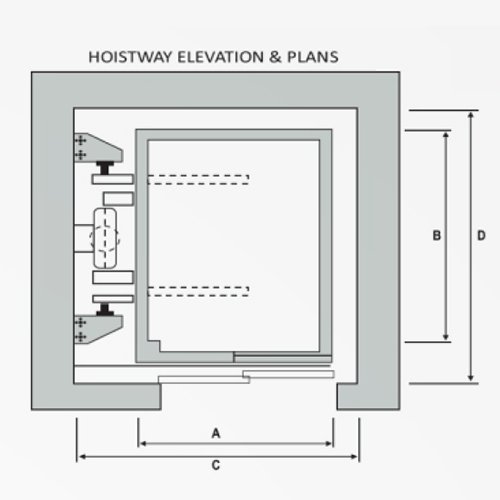

| Per | Capicity | CAR-W | CAR-D | SHAFT-W | SHAFT*-D |
| son | In Kg. | A | B | C | D |
| 3 | 225 | 800 | 900 | 1300 | 1300 |
| 4 | 300 | 850 | 1050 | 1350 | 1450 |
| 5 | 375 | 1000 | 1100 | 1500 | 1500 |
| 6 | 450 | 1100 | 1150 | 1600 | 1550 |
| 8 | 600 | 1100 | 1400 | 1600 | 1800 |
| 10 | 750 | 1200 | 1550 | 1700 | 1950 |
| 12 | 900 | 1300 | 1650 | 1800 | 2050 |
| 15 | 1125 | 1300 | 2000 | 1800 | 2400 |
| 20 | 1600 | 1400 | 2400 | 1900 | 2800 |
